DESCRIPTION

When the engine is running or the ignition switch is ON, the power window regulator motor assembly (for rear RH side) is operated by the power window regulator switch assembly (for rear RH side). The power window regulator motor assembly (for rear RH side) has motor, regulator, and ECU functions.

HINT:

If the pulse sensor built into the power window regulator motor (for rear RH side) malfunctions, the power window control system enters fail-safe mode. The remote up/down and auto up/down functions cannot be operated during fail-safe mode. However, the power window can be closed by holding the power window regulator switch assembly (for rear RH side) at the auto up position, and opened manually by pushing down the power window regulator switch assembly (for rear RH side).

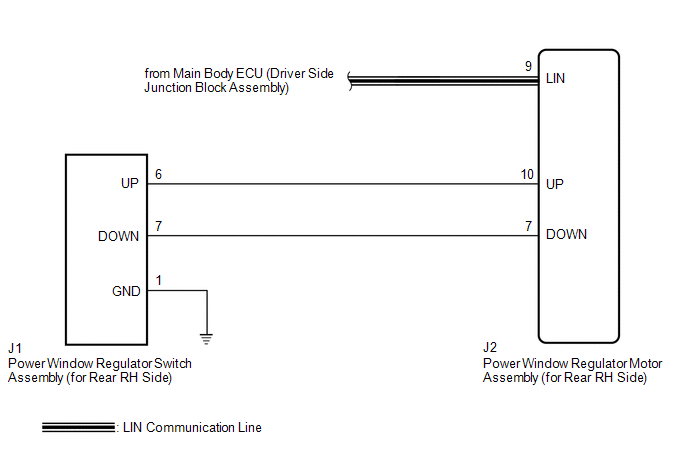

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

The power window control system uses a multiplex communication system (LIN communication system). Inspect the communication function by following How to Proceed with Troubleshooting (See page ). Troubleshoot the power window control
system after confirming that the communication system is functioning properly.
When the power window regulator motor assembly (for rear RH side) is reinstalled or replaced, the power window control system must be initialized.
After a door glass or a door glass run has been replaced, the jam protection function may operate unexpectedly when the auto up function is used. In such cases, the auto up function can be reinitialized by repeating the following operations at least 5 times:
1. Close the power window by fully pulling up the power window regulator switch assembly (for rear RH side) and holding it at the auto up position.
2. Open the power window by fully pushing down the power window regulator switch assembly (for rear RH side).
When the ECU determines that the power window regulator motor assembly (for rear RH side) has a malfunction, DTC B2311 is set.

PROCEDURE

1.	READ VALUE USING TECHSTREAM (Main Body)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(d) Enter the following menus: Body Electrical / Main Body / Data List.

(e) Read the Data List according to the display on the Techstream.

Main Body (Main Body ECU (Driver Side Junction Block Assembly))

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Communication RR-Door Motor	Connection status between power window regulator motor (for rear RH) and main body ECU (driver side junction block assembly) / OK or STOP	OK: Normal communication STOP: Communication stopped	-

Tester Display

Measurement Item/Range

Normal Condition

Diagnostic Note

Communication RR-Door Motor

Connection status between power window regulator motor (for rear RH) and main body ECU (driver side junction block assembly) / OK or STOP

OK: Normal communication

STOP: Communication stopped

OK:

On the Techstream screen, OK is displayed.

GO TO LIN COMMUNICATION SYSTEM (Proceed to How to Proceed with Troubleshooting)

2.	READ VALUE USING TECHSTREAM (RR-Door Motor)

(a) Enter the following menus: Body Electrical / RR-Door Motor / Data List.

(b) Read the Data List according to the display on the Techstream.

RR-Door Motor (Power Window Regulator Motor Assembly (for Rear RH Side))

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
RR Door P/W Up SW	Rear RH side power window manual up switch signal / ON or OFF	ON: Rear RH door power window manual up switch operated OFF: Rear RH door power window manual up switch not operated	-
RR Door P/W Down SW	Rear RH side power window manual down switch signal / ON or OFF	ON: Rear RH door power window manual down switch operated OFF: Rear RH door power window manual down switch not operated	-

Tester Display

Measurement Item/Range

Normal Condition

Diagnostic Note

RR Door P/W Up SW

Rear RH side power window manual up switch signal / ON or OFF

ON: Rear RH door power window manual up switch operated

OFF: Rear RH door power window manual up switch not operated

RR Door P/W Down SW

Rear RH side power window manual down switch signal / ON or OFF

ON: Rear RH door power window manual down switch operated

OFF: Rear RH door power window manual down switch not operated

OK:

On the Techstream screen, ON or OFF is displayed accordingly.

GO TO STEP 4

3.	PERFORM ACTIVE TEST USING TECHSTREAM (RR-Door Motor)

(a) Enter the following menus: Body Electrical / RR-Door Motor / Active Test.

(b) Perform the Active Test according to the display on the Techstream.

RR-Door Motor (Power Window Regulator Motor Assembly (for Rear LH Side))

Tester Display	Test Part	Control Range	Diagnostic Note
Power Window	Power window	OFF / UP / DOWN	-

OK:

Rear RH power window operates normally.

CAUTION:

Be careful to avoid injuries as this test causes vehicle parts to move. During the Active Test, the jam protection function will not operate.

REPLACE MAIN BODY ECU (DRIVER SIDE JUNCTION BLOCK ASSEMBLY)

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH side)

4.	INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH Side)

(a) Remove the power window regulator switch assembly (for rear RH side) (See page ).

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
6 (UP) - 1 (GND)	Auto up or up position	Below 1 Ω
7 (DOWN) - 1 (GND)	Auto down or down position	Below 1 Ω

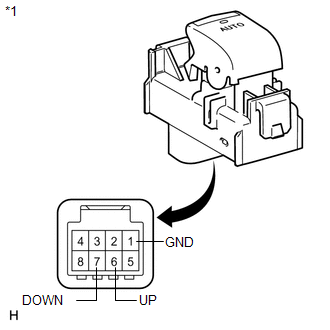

Text in Illustration

*1	Component without harness connected (Power Window Regulator Switch Assembly (for Rear RH Side))

REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH side)

5.	CHECK HARNESS AND CONNECTOR (REAR RH SIDE SWITCH - REAR RH SIDE MOTOR AND BODY GROUND)

(a) Disconnect the power window regulator motor assembly (for rear RH side) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
J1-6 (UP) - J2-10 (UP)	Always	Below 1 Ω
J1-7 (DOWN) - J2-7 (DOWN)	Always	Below 1 Ω
J1-1 (GND) - Body ground	Always	Below 1 Ω
J1-6 (UP) - Body ground	Always	10 kΩ or higher
J1-7 (DOWN) - Body ground	Always	10 kΩ or higher
J2-10 (UP) - Body ground	Always	10 kΩ or higher
J2-7 (DOWN) - Body ground	Always	10 kΩ or higher

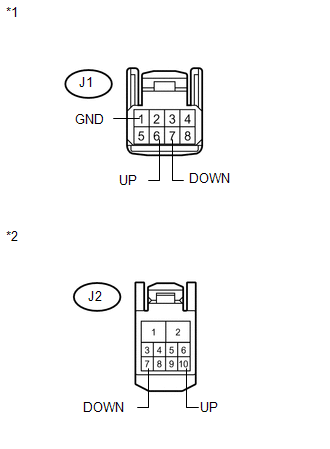

Text in Illustration

Front view of wire harness connector

(to Power Window Regulator Switch Assembly (for Rear RH Side))

Front view of wire harness connector

(to Power Window Regulator Motor Assembly (for Rear RH Side))

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH side)

REPAIR OR REPLACE HARNESS OR CONNECTOR
