INSTALLATION

PROCEDURE

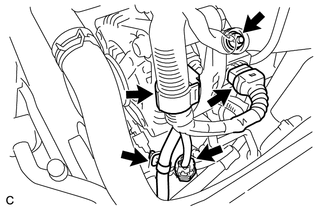

1. INSTALL GENERATOR ASSEMBLY

(a) Install the wire harness clamp with the bolt.

Torque:

8.4 N·m {86 kgf·cm, 74 in·lbf}

(b) Install the 2 bolts.

Torque:

43 N·m {438 kgf·cm, 32 ft·lbf}

Torque:

20 N·m {204 kgf·cm, 15 ft·lbf}

(d) Connect the wire harness clamp.

(e) Connect the generator connector to the generator assembly.

(f) Install the generator wire with the nut.

Torque:

9.8 N·m {100 kgf·cm, 87 in·lbf}

(g) Install the terminal cap.

(h) Connect the 2 wire harness clamps.

(i) Connect the magnetic clutch connector to the compressor and magnetic clutch.

2. INSTALL V-RIBBED BELT

HINT:

See page

3. INSTALL RADIATOR ASSEMBLY

HINT:

See page

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).

Replacement
