1. PUSH-BUTTON START DESCRIPTION

(a) The push-button start uses a push-type engine switch, which the driver can operate by merely carrying the electrical key. This system consists primarily of the power management control ECU, engine switch, steering lock ECU, electrical key, ACC relay, IG1 relay, IG2 relay and certification ECU (smart key ECU assembly). The power management control ECU controls the system. This function operates in cooperation with the smart key system.

HINT:

In this chapter, the expression "power source" has been used in some locations to allow precise explanations. The power source mode is also expressed using conventional expressions such as "engine switch off", "engine switch on (ACC)" and "engine switch on (IG)".

2. FUNCTION OF MAIN COMPONENTS

Component	Function
Engine Switch Transponder Key Amplifier	Transmits engine switch signal to power management control ECU. Informs driver of power source mode or system abnormality with illumination stage of indicator light. Receives ID code and transmits it to certification ECU (smart key ECU assembly) when key battery is low.
Electrical Key	Receives signals from oscillators and returns ID code to entry door control receiver.
Electrical Key Oscillator Console and Rear Seat	Receives request signals from certification ECU (smart key ECU assembly) and forms detection area in vehicle.
Power Management Control ECU	Changes power source mode in 4 stages (off, on (ACC), on (IG), start) in accordance with shift position and state of stop light switch. Controls push-button start function in accordance with signals received from switches and each ECU. Permits the steering lock actuator assembly (steering lock ECU) to supply power to activate the motor. Power management control ECU and certification ECU (smart key ECU assembly) permit starting of engine after receiving unlock signal from steering lock actuator assembly (steering lock ECU).
Certification ECU (smart key ECU assembly)	Certifies ID code received from entry door control receiver.
Stop Light Switch	Outputs state of brake pedal to power management control ECU.
Steering Lock Actuator Assembly (steering lock ECU)	Included in steering lock actuator assembly. Activates steering lock motor based on permission signals from power management control ECU. Receives lock/unlock request signals from certification ECU and power management control ECU. Detects steering lock/unlock positions and transmits status to other ECUs.

3. SYSTEM FUNCTION

The electric controls of the push-button start function are described below:

Control	Outline
Engine switch control	When the person carrying the key enters the vehicle and the brake pedal is depressed, the power management control ECU sends the key certification request signal to the certification ECU (smart key ECU assembly). On receiving the key certification request signal, the certification ECU (smart key ECU assembly) generates a request signal and sends it to the indoor electrical key oscillator. The indoor electrical key oscillator transmits the request signal in order to detect that the key is in the cabin. When the key receives the request signal, it sends back the response code and ID code. When the door control receiver assembly receives the signal from the key, it sends the ID code to the certification ECU (smart key ECU assembly). The certification ECU then matches the received ID code with the memorized code to determine if the key is one that has been registered. If the ID codes match, the certification ECU (smart key ECU assembly) sends the certification OK signal to the power management control ECU. Upon receiving the certification OK signal, the power management control ECU illuminates the engine switch indicator light, changes the power source mode and starts the engine depending on how the engine switch is operated.
Diagnosis	When the power management control ECU detects a malfunction, the power management control ECU diagnoses and memorizes information related to the fault.

Control

Outline

Engine switch control

When the person carrying the key enters the vehicle and the brake pedal is depressed, the power management control ECU sends the key certification request signal to the certification ECU (smart key ECU assembly).

On receiving the key certification request signal, the certification ECU (smart key ECU assembly) generates a request signal and sends it to the indoor electrical key oscillator. The indoor electrical key oscillator transmits the request signal in order to detect that the key is in the cabin.

When the key receives the request signal, it sends back the response code and ID code.

When the door control receiver assembly receives the signal from the key, it sends the ID code to the certification ECU (smart key ECU assembly). The certification ECU then matches the received ID code with the memorized code to determine if the key is one that has been registered.

If the ID codes match, the certification ECU (smart key ECU assembly) sends the certification OK signal to the power management control ECU.

Upon receiving the certification OK signal, the power management control ECU illuminates the engine switch indicator light, changes the power source mode and starts the engine depending on how the engine switch is operated.

Diagnosis

When the power management control ECU detects a malfunction, the power management control ECU diagnoses and memorizes information related to the fault.

4. CONSTRUCTION AND OPERATION

(a) Engine Switch

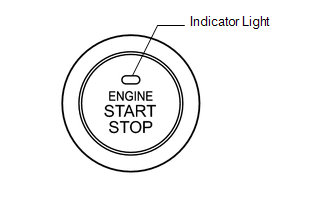

The engine switch consists of a momentary type switch, 3 color (amber, green, greenish white) LEDs, and a transponder key amplifier.

The greenish white LED is for illumination.
The amber and green LEDs are for the indicator lights. The driver can check the present power source mode and whether the engine can start in accordance with the illumination state of the indicator light.
When the power management control ECU detects an abnormality in the push-button start system, it makes the amber indicator light flash. If the engine stopped in this state, it may not be possible to restart it.

(b) Indicator Light Condition

Engine Switch Indicator Light Condition

Power Source Mode/Condition	Indicator Light Condition
Power Source Mode/Condition	Brake pedal released	Brake pedal depressed, shift lever in P or N
off	off	Turns on (Green)
on (ACC, IG)	Turns on (Amber)	Turns on (Green)
Engine running	off	off
Steering lock not unlocked	Flashes (Green) for 30 sec.	Flashes (Green) for 30 sec.
System malfunction	Flashes (Amber) for 15 sec.	Flashes (Amber) for 15 sec.

The power management control ECU consists of the IG1 and IG2 relay actuation circuits and CPU.

HINT:

Before removing the battery, make sure to turn the engine switch off. The power management control ECU constantly stores the present power source mode in its memory. Therefore, if the power supply for the power management control ECU is interrupted by disconnecting the battery, the power management control ECU restores the power source mode after the battery is reconnected. For this reason, if the battery is disconnected when the engine switch is other than off, the power will be restored to the vehicle at the same time the power is restored to the power management control ECU (by reconnecting the battery).

5. PUSH-BUTTON START FUNCTION OPERATION

(a) This system has different power source mode patterns depending on the brake pedal condition and shift lever position.

Brake Pedal	Shift Lever	Power Source Mode Pattern
Depressed	P or N	When the engine switch is pushed once. off → engine start
Not depressed	P	Each time the engine switch is pushed. off → on (ACC) → on (IG) → off
Not depressed	Except P	Each time the engine switch is pushed. off → on (ACC) → on (IG) → on (ACC)
-	P	When the engine switch is pushed in the on (IG) condition (engine running). on (IG) → off
-	Except P	When the engine switch is pushed in the on (IG) condition (engine running). on (IG) → on (ACC)

When the key battery is low, the push-button start function can be operated by holding the key against the engine switch.

After approximately 20 minutes has passed with the engine switch on (ACC) or 1 hour has passed with the engine switch on (IG) and the shift position in P, the power management control ECU will automatically cut the power supply (the power source mode changes to off).
The illustration below shows the transition of power source modes.

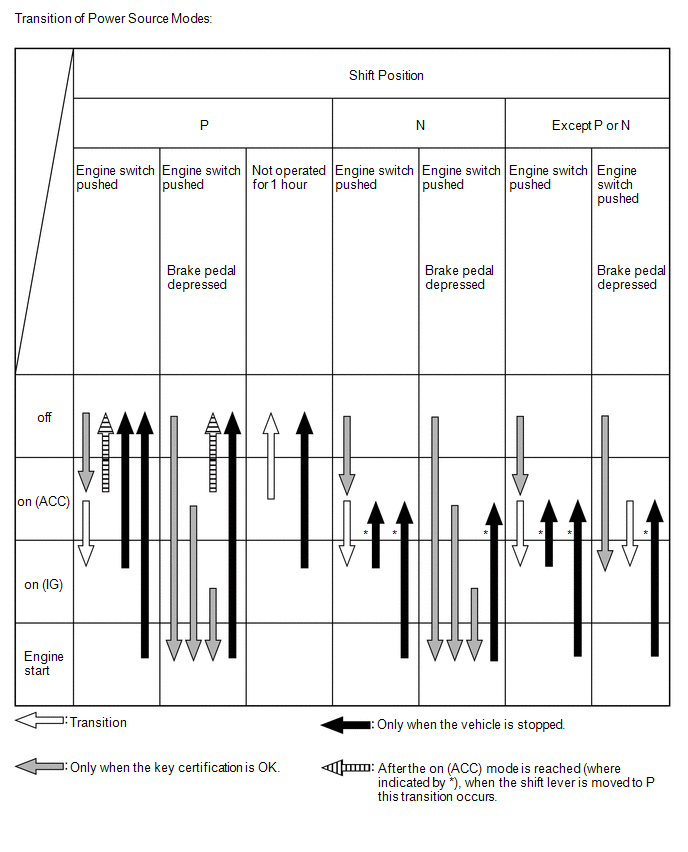

Transition of power source modes:

HINT:

While the vehicle is being driven normally, operation of the engine switch is disabled. However, if the engine must be stopped in an emergency while the vehicle is being driven, pressing the engine switch for 2 seconds or more or 3 times quickly stops the engine. The power source mode will change from start to on (ACC).

6. WHEN KEY BATTERY IS LOW

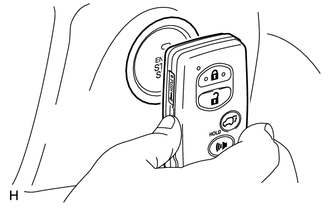

(a) To operate the push-button start function when the key battery is low, hold the key close to the engine switch with the brake pedal depressed.

(b) The power management control ECU transmits a key verification request signal to the certification ECU (smart key ECU assembly) when it receives the stop light switch signal.

(c) The certification ECU (smart key ECU assembly) does not receive an ID code response from the entry door control receiver, so it actuates the transponder key amplifier built into the engine switch.

(d) The transponder key amplifier outputs an engine immobiliser radio wave to the key.

(e) The key receives the radio wave, and returns a radio wave response to the transponder key amplifier.

(f) The transponder key amplifier combines the key ID codes with the radio wave response, and transmits it to the certification ECU (smart key ECU assembly).

(g) The certification ECU (smart key ECU assembly) judges and verifies the ID code, and transmits a key verification OK signal to the power management control ECU. The buzzer in the combination meter sounds at the same time.

(h) After the buzzer sounds, if the engine switch is pressed within 5 seconds with the brake pedal not depressed, the power source mode changes to on (ACC) or on (IG), the same as in the normal condition.

7. DIAGNOSIS

The power management control ECU can detect malfunctions in the push-button start function when the power source mode is on (IG).

When the ECU detects a malfunction, the amber indicator light of the engine switch flashes to warn the driver. At the same time, the ECU stores a 5-digit Diagnostic Trouble Code (DTC) in its memory.

The indicator light warning continues for 15 seconds even after the power source mode is changed to off.
The DTC can be read by connecting the Techstream to the DLC3.
The push-button start function cannot be operated if a malfunction occurs.

System Diagram
