INSTALLATION

PROCEDURE

1. INSTALL REAR DOOR UPPER WINDOW FRAME MOULDING

(a) Engage the guide and install the rear door upper window frame moulding to the door frame.

(b) Using an air riveter or hand riveter with a nose piece, install the rear door upper window frame moulding with 5 new rivets.

HINT:

Tighten the 5 rivets in the order shown in the illustration.
If the rivet cannot be cut, pull it once and cut it.

Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.
Confirm that the rivets are seated properly against the moulding. Do not tilt the riveter when installing the rivet to the moulding. Do not leave any space between the rivet head and moulding.

Do not leave any space between the moulding and door frame. Firmly hold the 2 items together while installing the rivet.

2. INSTALL REAR DOOR REAR WINDOW FRAME MOULDING

(a) Engage the guide and install the rear door rear window frame moulding to the door frame.

(b) Using an air riveter or hand riveter with a nose piece, install the rear door rear window frame moulding with 3 new rivets.

HINT:

Tighten the 3 rivets in the order shown in the illustration.
If the rivet cannot be cut, pull it once and cut it.

Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.
Confirm that the rivets are seated properly against the moulding. Do not tilt the riveter when installing the rivet to the moulding. Do not leave any space between the rivet head and moulding.

Do not leave any space between the moulding and door frame. Firmly hold the 2 items together while installing the rivet.

3. INSTALL REAR DOOR FRONT WINDOW FRAME MOULDING

HINT:

When installing the rear door front window frame moulding, heat the vehicle body and rear door front window frame moulding using a heat light.

Heating Temperature

Item	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Moulding	20 to 30°C (68 to 86°F)

NOTICE:

Do not heat the vehicle body or rear door front window frame moulding excessively.

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) Clean the rear door front window frame moulding (if reusing the rear door front window frame moulding).

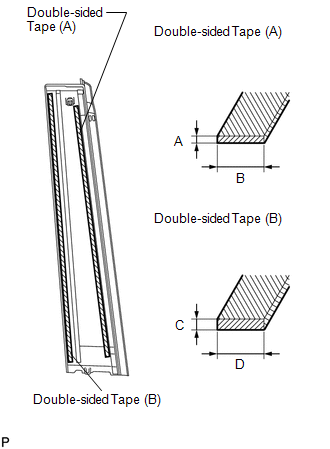

Item	Dimension
A	0.4 mm (0.0157 in.)
B	8.0 mm (0.315 in.)
C	0.8 mm (0.0315 in.)
D	5.0 mm (0.197 in.)

(1) Using a heat light, heat the rear door front window frame moulding.

(2) Remove the double-sided tape from the rear door front window frame moulding.

(3) Wipe off any tape adhesive residue with cleaner.

(4) Apply new double-sided tape to the rear door front window frame moulding.

Text in Illustration

*1	Double-sided Tape

(1) Using a heat light, heat the vehicle body and rear door front window frame moulding.

(2) Remove the peeling paper from the face of the rear door front window frame moulding.

HINT:

After removing the peeling paper, keep the exposed adhesive free from foreign matter.

(3) Install the rear door front window frame moulding with the clip.

4. INSTALL REAR DOOR BELT MOULDING

5. INSTALL REAR DOOR GLASS SUB-ASSEMBLY

6. INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

7. INSTALL REAR DOOR GLASS RUN

8. INSTALL REAR DOOR WEATHERSTRIP

9. INSTALL REAR DOOR CHECK ASSEMBLY

10. INSTALL REAR DOOR SERVICE HOLE COVER

11. INSTALL REAR DOOR INSIDE HANDLE SUB-ASSEMBLY

12. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

13. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

14. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG

15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).

16. INITIALIZE POWER WINDOW CONTROL SYSTEM

(See page )
