Toyota Venza: Relay

Toyota Venza Service Manual / Lighting (int) / Relay

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT DOME CUT RELAY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
3 - 5	Battery voltage applied to terminals 1 and 2	Below 1 Ω
3 - 5	Battery voltage not applied between terminals	10 kΩ or higher

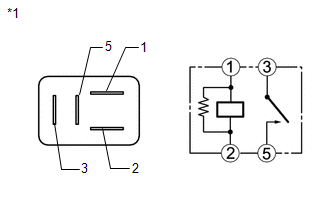

Text in Illustration

*1	Component without harness connected (DOME CUT Relay)

If the result is not as specified, replace the DOME CUT relay.
