Toyota Venza: Transponder Key Amplifier

Toyota Venza Service Manual / Theft Deterrent / Keyless Entry / Transponder Key Amplifier

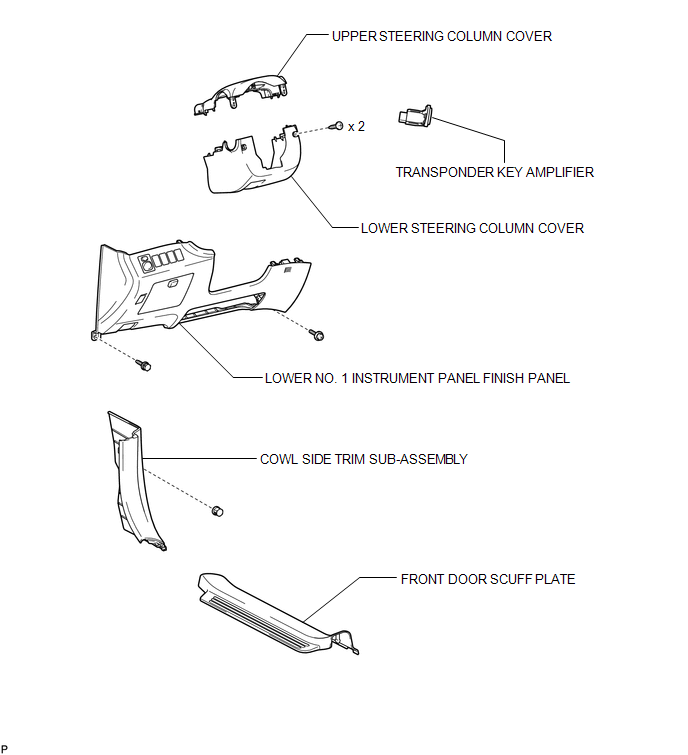

Components

COMPONENTS

ILLUSTRATION

Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT DOOR SCUFF PLATE

2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY

3. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

4. REMOVE LOWER STEERING COLUMN COVER

5. REMOVE UPPER STEERING COLUMN COVER

6. REMOVE TRANSPONDER KEY AMPLIFIER

(a) Disengage the 2 claws and disconnect the transponder key amplifier as shown in the illustration.

(b) Disconnect the connector and remove the transponder key amplifier.

Installation

INSTALLATION

PROCEDURE

1. INSTALL TRANSPONDER KEY AMPLIFIER

(a) Connect the connector to the transponder key amplifier.

(b) Engage the 2 claws and install the transponder key amplifier.

2. INSTALL UPPER STEERING COLUMN COVER

3. INSTALL LOWER STEERING COLUMN COVER

4. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

5. INSTALL COWL SIDE TRIM SUB-ASSEMBLY

6. INSTALL FRONT DOOR SCUFF PLATE
