Toyota Venza: Installation

INSTALLATION

PROCEDURE

1. INSTALL GENERATOR ASSEMBLY

(a) Install the generator with the 2 bolts.

Torque:

52 N·m {530 kgf·cm, 38 ft·lbf}


(b) Install the wire harness clamp bracket with the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}


(c) Connect the generator wire with the nut.

Torque:

9.8 N·m {100 kgf·cm, 87 in·lbf}

(d) Install the terminal cap.

(e) Connect the generator connector.

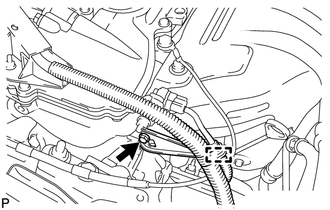

2. INSTALL WIRE HARNESS CLAMP BRACKET

(a) Install the clamp bracket with the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}


(b) Attach the wire harness clamp to the clamp bracket.

3. INSTALL V-RIBBED BELT

HINT:

See page


4. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY


5. INSTALL COOL AIR INTAKE DUCT SEAL


6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).
