DESCRIPTION

The front occupant classification sensor LH circuit consists of the occupant classification ECU and front occupant classification sensor LH.

DTC B1780 is recorded when a malfunction is detected in the front occupant classification sensor LH circuit.

DTC No.

DTC Detection Condition

Trouble Area

B1780

  • The occupant classification ECU receives a line short circuit signal, an open circuit signal, a short circuit to ground signal or a short circuit to B+ signal in the front occupant classification sensor LH circuit for 2 seconds.
  • Front occupant classification sensor LH malfunction
  • Occupant classification ECU malfunction
  • Front seat frame with adjuster assembly RH (Front occupant classification sensor LH)
  • Occupant classification ECU
  • Front seat wire RH

HINT:

When DTC B1650/32 is detected as a result of troubleshooting for the airbag system, check the DTCs stored in the occupant classification ECU. When DTC B1780 is output, perform troubleshooting for the DTC.

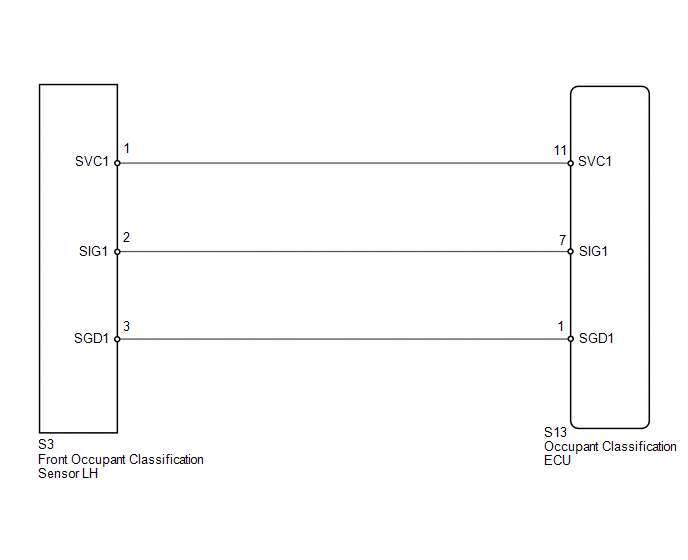

WIRING DIAGRAM


CAUTION / NOTICE / HINT

HINT:

  • If troubleshooting (wire harness inspection) is difficult to perform, remove the front passenger seat installation bolts to see under the seat cushion.
  • In the above case, hold the seat so that it does not fall down. Hold the seat only as necessary because holding the seat for a long period of time may cause seat rail deformation.

PROCEDURE

1.

CHECK CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal.

(c) Check that the connectors are properly connected to the occupant classification ECU and front occupant classification sensor LH.

OK:

The connectors are properly connected.

HINT:

If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.

(d) Disconnect the connectors from the occupant classification ECU and front occupant classification sensor LH.

(e) Check that the terminals of connectors are not damaged.

OK:

The terminals are not deformed or damaged.


NG

REPLACE FRONT SEAT WIRE RH


OK

2.

CHECK FRONT SEAT WIRE RH (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.


(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

S13-1 (SGD1) - Body ground

Ignition switch ON

Below 1 V

S13-7 (SIG1) - Body ground

Ignition switch ON

Below 1 V

S13-11 (SVC1) - Body ground

Ignition switch ON

Below 1 V

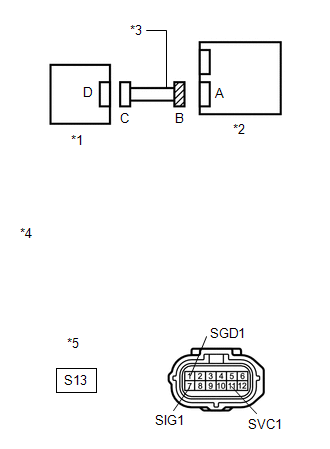

Text in Illustration

*1

Front Occupant Classification Sensor LH

*2

Occupant Classification ECU

*3

Front Seat Wire RH

*4

Front view of wire harness connector

(to Occupant Classification ECU)

*5

Connector B


NG

REPLACE FRONT SEAT WIRE RH


OK

3.

CHECK FRONT SEAT WIRE RH (OPEN)

(a) Turn the ignition switch off.


(b) Disconnect the cable from the negative (-) battery terminal.

(c) Using SST, connect terminals 1 (SVC1) and 3 (SGD1), and connect terminals 2 (SIG1) and 3 (SGD1) of connector C.

NOTICE:

Do not forcibly insert SST into the terminals of the connector when connecting.

SST: 09843-18040

(d) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

S13-7 (SIG1) - S13-1 (SGD1)

Always

Below 1 Ω

S13-11 (SVC1) - S13-1 (SGD1)

Always

Below 1 Ω

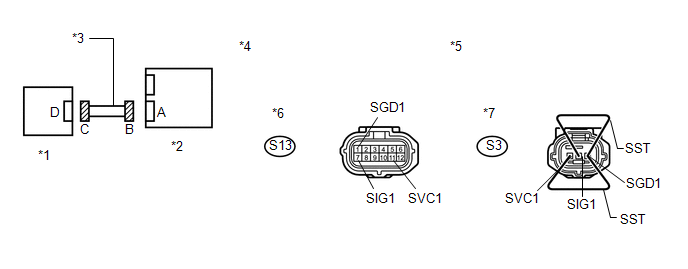

Text in Illustration

*1

Front Occupant Classification Sensor LH

*2

Occupant Classification ECU

*3

Front Seat Wire RH

*4

Front view of wire harness connector

(to Occupant Classification ECU)

*5

Front view of wire harness connector

(to Front Occupant Classification Sensor LH)

*6

Connector B

*7

Connector C

-

-


NG

REPLACE FRONT SEAT WIRE RH


OK

4.

CHECK FRONT SEAT WIRE RH (SHORT)

(a) Disconnect SST from connector C.


(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

S13-7 (SIG1) - S13-1 (SGD1)

Always

1 MΩ or higher

S13-11 (SVC1) - S13-1 (SGD1)

Always

1 MΩ or higher

S13-7 (SIG1) - S13-11 (SVC1)

Always

1 MΩ or higher

Text in Illustration

*1

Front Occupant Classification Sensor LH

*2

Occupant Classification ECU

*3

Front Seat Wire RH

*4

Front view of wire harness connector

(to Occupant Classification ECU)

*5

Connector B


NG

REPLACE FRONT SEAT WIRE RH


OK

5.

CHECK FRONT SEAT WIRE RH (SHORT TO GROUND)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

S13-1 (SGD1) - Body ground

Always

1 MΩ or higher

S13-7 (SIG1) - Body ground

Always

1 MΩ or higher

S13-11 (SVC1) - Body ground

Always

1 MΩ or higher

Text in Illustration

*1

Front Occupant Classification Sensor LH

*2

Occupant Classification ECU

*3

Front Seat Wire RH

*4

Front view of wire harness connector

(to Occupant Classification ECU)

*5

Connector B



NG

REPLACE FRONT SEAT WIRE RH


OK

6.

CHECK DTC

(a) Connect the connectors to the occupant classification ECU and front occupant classification sensor LH.

(b) Connect the cable to the negative (-) battery terminal.

(c) Turn the ignition switch to ON.

(d) Clear the DTCs stored in the occupant classification ECU (See page ).


(e) Clear the DTCs stored in the center airbag sensor assembly (See page ).


(f) Turn the ignition switch off.

(g) Turn the ignition switch to ON.

(h) Check for DTCs (See page ).


OK:

DTC B1780 is not output.

HINT:

Codes other than DTC B1780 may be output at this time, but they are not related to this check.


OK

USE SIMULATION METHOD TO CHECK


NG

7.

REPLACE OCCUPANT CLASSIFICATION ECU

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal.

(c) Replace the occupant classification ECU (See page ).


HINT:

Perform the inspection using parts from a normal vehicle if possible.


NEXT

8.

PERFORM ZERO POINT CALIBRATION

(a) Connect the cable to the negative (-) battery terminal.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Using the Techstream, perform Zero Point Calibration (See page ).


OK:

"Zero Point Calibration is complete." is displayed.


NG

GO TO STEP 11


OK

9.

PERFORM SENSITIVITY CHECK

(a) Using the Techstream, perform Sensitivity Check (See page ).


Standard:

27 to 33 kg (59.5 to 72.8 lb)


NG

GO TO STEP 11


OK

10.

CHECK DTC

(a) Turn the ignition switch to ON.

(b) Clear the DTCs stored in the occupant classification ECU (See page ).


(c) Clear the DTCs stored in the center airbag sensor assembly (See page ).


(d) Turn the ignition switch off.

(e) Turn the ignition switch to ON.

(f) Check for DTCs (See page ).


OK:

DTC B1780 is not output.

HINT:

Codes other than DTC B1780 may be output at this time, but they are not related to this check.


OK

END


NG

11.

REPLACE FRONT SEAT FRAME WITH ADJUSTER ASSEMBLY RH

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal.

(c) Replace the front seat frame with adjuster assembly RH (See page for power seat or
for manual seat).



NEXT

12.

PERFORM ZERO POINT CALIBRATION

(a) Connect the cable to the negative (-) battery terminal.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Using the Techstream, perform Zero Point Calibration (See page ).


OK:

"Zero Point Calibration is complete." is displayed.


NEXT

13.

PERFORM SENSITIVITY CHECK

(a) Using the Techstream, perform Sensitivity Check (See page ).


Standard:

27 to 33 kg (59.5 to 72.8 lb)


NEXT

END
