DESCRIPTION

These DTCs are stored when a malfunction occurs in the navigation antenna assembly.

DTC No.	DTC Detection Condition	Trouble Area
B15C0	Navigation antenna malfunction	Navigation antenna assembly Navigation receiver assembly
B15C1	Navigation antenna power source malfunction	Navigation antenna assembly Navigation receiver assembly

CAUTION / NOTICE / HINT

NOTICE:

Check that the navigation antenna assembly cable is properly installed and does not have any sharp bends, pinching or loose connections before performing the following inspection procedure (See page ).

PROCEDURE

CHECK DTC

(a) Clear the DTCs (See page ).

(b) Recheck for DTCs and check that no DTCs are output.

OK:

No DTCs are output.

USE SIMULATION METHOD TO CHECK

2.	INSPECT NAVIGATION ANTENNA ASSEMBLY

(a) Remove the navigation antenna assembly (See page ).

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - 1a	Always	50 to 500 Ω

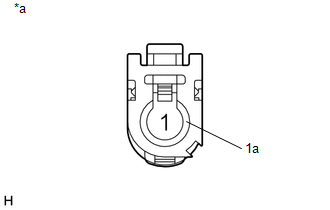

Text in Illustration

*a	Component without harness connected (Navigation Antenna Assembly)

REPLACE NAVIGATION RECEIVER ASSEMBLY

REPLACE NAVIGATION ANTENNA ASSEMBLY
