Toyota Venza: On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT REAR WIPER MOTOR AND BRACKET ASSEMBLY

(a) Operate the rear wiper motor and bracket assembly.


(b) Stop the rear wiper motor and bracket assembly operation.

(c) Check the automatic stop position.

OK:

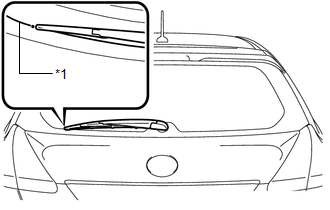

The rear wiper stops at the position shown in the illustration.

Text in Illustration

*1

Defogger Line

Components
COMPONENTS ILLUSTRATION ...

Removal
REMOVAL PROCEDURE 1. REMOVE BACK DOOR PANEL TRIM ASSEMBLY 2. REMOVE REAR WIPER ARM HEAD CAP (a) Disengage the 4 claws and remove the rear wiper arm head cap as shown in the illus ...
