Toyota Venza: Installation

INSTALLATION

PROCEDURE

1. INSTALL FRONT DOOR LOCK ASSEMBLY

NOTICE:

  • When reusing the removed front door lock assembly, replace the door lock wiring harness seal on the connector with a new one.
  • Do not allow grease or dust to adhere to the door lock wiring harness seal surface of the connector.
  • Reusing the door lock wiring harness seal or using a damaged door lock wiring harness seal may cause water intrusion. This may result in a malfunction of the front door lock assembly.

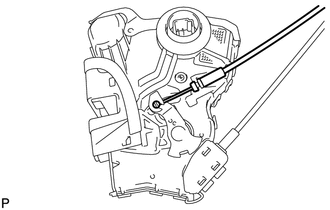

(a) Install the front door inside locking cable assembly to the front door lock assembly.


(b) Engage the 3 claws.


(c) Install the front door lock remote control cable assembly to the front door lock assembly.


(d) Apply MP grease to the sliding parts of the front door lock assembly.

(e) Install a new door lock wiring harness seal to the front door lock assembly.


(f) Insert the front door lock open rod to the front door lock assembly.


(g) Make sure that the front door lock open rod is securely connected to the front door lock assembly.

(h) Apply adhesive to the threads of the bolt.

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

(i) Using a T30 "TORX" socket wrench, install the front door lock assembly with the 3 screws.

Torque:

5.0 N·m {51 kgf·cm, 44 in·lbf}

2. INSTALL FRONT DOOR OUTSIDE HANDLE COVER WITH LOCK CYLINDER ASSEMBLY


3. INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY


4. INSTALL FRONT DOOR GLASS RUN


5. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY


6. INSTALL FRONT DOOR SERVICE HOLE COVER


7. INSTALL DOOR SIDE AIRBAG SENSOR


8. INSTALL FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY


9. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY


10. INSTALL COURTESY LIGHT ASSEMBLY


11. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)


12. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)


13. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG


14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).


15. INITIALIZE POWER WINDOW CONTROL SYSTEM

(See page )


16. INSPECT SRS WARNING LIGHT

(See page )


Inspection
