Toyota Venza: CD Sound Skips

Toyota Venza Service Manual / Navigation / Multi Info Display / Navigation System / CD Sound Skips

PROCEDURE

CHECK CD

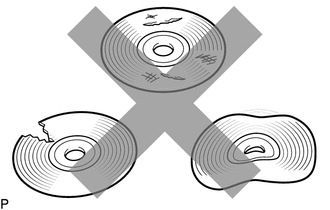

(a) Check that the CD is not deformed or cracked.

OK:

No deformation or cracks on the CD.

END (CD IS FAULTY)

CHECK CD

(a) Check the CD.

OK:

The CD is clean.

NOTICE:

Do not use a conventional record cleaner or anti-static preservative.

HINT:

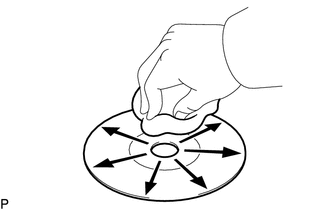

If dirt is on the CD surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.

CLEAN CD

3.	REPLACE CD AND RECHECK

(a) Replace the CD with a new or known good one and check that the malfunction disappears.

OK:

Malfunction disappears.

END (CD WAS FAULTY)

4.	CHECK NAVIGATION RECEIVER ASSEMBLY

(a) Check the navigation receiver assembly installation condition.

(1) Check that the navigation receiver assembly is properly installed.

OK:

The navigation receiver assembly is properly installed.

REPLACE NAVIGATION RECEIVER ASSEMBLY
