Toyota Venza: Short in Side Squib RH Circuit (B1820/55-B1823/55)

Toyota Venza Service Manual / Supplemental Restraint Systems / Airbag System / Short in Side Squib RH Circuit (B1820/55-B1823/55)

DESCRIPTION

The side squib RH circuit consists of the center airbag sensor assembly and front seat side airbag assembly RH.

The center airbag sensor assembly uses this circuit to deploy the airbag when deployment conditions are met.

These DTCs are stored when a malfunction is detected in the side squib RH circuit.

DTC No.

DTC Detection Condition

Trouble Area

B1820/55

  • The center airbag sensor assembly receives a line short circuit signal in the side squib RH circuit during primary check.
  • Side squib RH malfunction
  • Center airbag sensor assembly malfunction
  • No. 2 floor wire
  • Front seat side airbag assembly RH (Side squib RH)
  • Center airbag sensor assembly

B1821/55

  • The center airbag sensor assembly receives an open circuit signal in the side squib RH circuit.
  • Side squib RH malfunction
  • Center airbag sensor assembly malfunction
  • No. 2 floor wire
  • Front seat side airbag assembly RH (Side squib RH)
  • Center airbag sensor assembly

B1822/55

  • The center airbag sensor assembly receives a short circuit to ground signal in the side squib RH circuit.
  • Side squib RH malfunction
  • Center airbag sensor assembly malfunction
  • No. 2 floor wire
  • Front seat side airbag assembly RH (Side squib RH)
  • Center airbag sensor assembly

B1823/55

  • The center airbag sensor assembly receives a short circuit to B+ signal in the side squib RH circuit.
  • Side squib RH malfunction
  • Center airbag sensor assembly malfunction
  • No. 2 floor wire
  • Front seat side airbag assembly RH (Side squib RH)
  • Center airbag sensor assembly

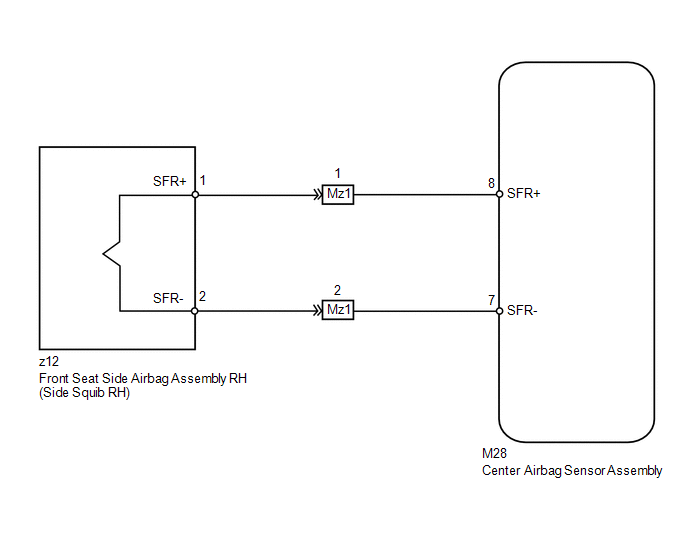

WIRING DIAGRAM


CAUTION / NOTICE / HINT

HINT:

  • Perform the simulation method by selecting check mode (Signal Check) using the Techstream (See page ).
  • After selecting check mode (Signal Check), perform the simulation method by wiggling each connector of the airbag system or driving the vehicle on a city or rough road (See page ).

PROCEDURE

1.

CHECK CONNECTORS

(a) Turn the ignition switch off.


(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Check that the connectors are properly connected to the front seat side airbag assembly RH and center airbag sensor assembly.

OK:

The connectors are properly connected.

HINT:

If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.

(d) Disconnect the connectors from the front seat side airbag assembly RH and center airbag sensor assembly.

(e) Check that the terminals of the connectors are not damaged.

OK:

The terminals are not deformed or damaged.

(f) Check that the short spring for the No. 2 floor wire with the activation prevention mechanism is not deformed or damaged.

OK:

The short spring is not deformed or damaged.

Text in Illustration

*1

Side Squib RH

*2

Center Airbag Sensor Assembly

*3

No. 2 Floor Wire


NG

REPLACE NO. 2 FLOOR WIRE


OK

2.

CHECK FRONT SEAT SIDE AIRBAG ASSEMBLY RH (SIDE SQUIB RH)

(a) Connect the connector to the center airbag sensor assembly.


(b) Connect SST (resistance 2.1 Ω) to connector C.

CAUTION:

Never connect an electrical tester to the front seat side airbag assembly RH (side squib RH) for measurement, as this may lead to a serious injury due to airbag deployment.

NOTICE:

  • Do not forcibly insert SST into the terminals of the connector when connecting.
  • Insert SST straight into the terminals of the connector.

SST: 09843-18061

(c) Connect the cable to the negative (-) battery terminal.

(d) Turn the ignition switch to ON, and wait for at least 60 seconds.

(e) Clear the DTCs stored in memory (See page ).


(f) Turn the ignition switch off.

(g) Turn the ignition switch to ON, and wait for at least 60 seconds.

(h) Check for DTCs (See page ).


OK:

DTC B1820, B1821, B1822, B1823 or 55 is not output.

HINT:

Codes other than DTCs B1820, B1821, B1822, B1823 and 55 may be output at this time, but they are not related to this check.

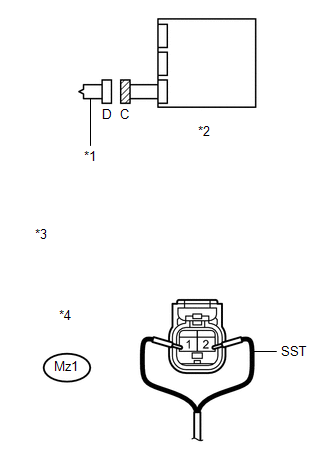

Text in Illustration

*1

Side Squib RH

*2

Center Airbag Sensor Assembly

*3

Front view of wire harness connector

(to Front Seat Side Airbag Assembly RH)

*4

Connector C


OK

REPLACE FRONT SEAT SIDE AIRBAG ASSEMBLY RH


NG

3.

CHECK NO. 2 FLOOR WIRE (SIDE SQUIB RH CIRCUIT)

(a) Turn the ignition switch off.


(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Disconnect SST from connector C.

(d) Disconnect the No. 2 floor wire from the center airbag sensor assembly.

(e) Check for a short to B+ in the circuit.

(1) Connect the cable to the negative (-) battery terminal.

(2) Turn the ignition switch to ON.

(3) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

Mz1-1 (SFR+) - Body ground

Ignition switch ON

Below 1 V

Mz1-2 (SFR-) - Body ground

Ignition switch ON

Below 1 V

(f) Check for an open in the circuit.

(1) Turn the ignition switch off.

(2) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(3) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Mz1-1 (SFR+) - Mz1-2 (SFR-)

Always

Below 1 Ω

(g) Check for a short to ground in the circuit.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Mz1-1 (SFR+) - Body ground

Always

1 MΩ or higher

Mz1-2 (SFR-) - Body ground

Always

1 MΩ or higher

(h) Check for a short in the circuit.

(1) Release the activation prevention mechanism built into connector B (See page ).


(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Mz1-1 (SFR+) - Mz1-2 (SFR-)

Always

1 MΩ or higher

Text in Illustration

*1

Side Squib RH

*2

Center Airbag Sensor Assembly

*3

No. 2 Floor Wire

*4

Front view of wire harness connector

(to Front Seat Side Airbag Assembly RH)

*5

Connector C


NG

REPLACE NO. 2 FLOOR WIRE


OK

4.

CHECK CENTER AIRBAG SENSOR ASSEMBLY

(a) Restore the released activation prevention mechanism of connector B to the original condition.


(b) Connect the connectors to the front seat side airbag assembly RH and center airbag sensor assembly.

(c) Connect the cable to the negative (-) battery terminal.

(d) Turn the ignition switch to ON, and wait for at least 60 seconds.

(e) Clear the DTCs stored in memory (See page ).


(f) Turn the ignition switch off.

(g) Turn the ignition switch to ON, and wait for at least 60 seconds.

(h) Check for DTCs (See page ).


OK:

DTC B1820, B1821, B1822, B1823 or 55 is not output.

Text in Illustration

*1

Side Squib RH

*2

Center Airbag Sensor Assembly

HINT:

Codes other than DTCs B1820, B1821, B1822, B1823 and 55 may be output at this time, but they are not related to this check.


OK

USE SIMULATION METHOD TO CHECK


NG

REPLACE CENTER AIRBAG SENSOR ASSEMBLY
