Toyota Venza: Room Oscillator does not Recognize Key

DESCRIPTION

If the room oscillator does not recognize a key, one of the following may be the cause: 1) communication between the indoor electrical key oscillator (for front floor) and key cannot be performed; 2) communication between the indoor electrical key oscillator (for center floor) and key cannot be performed; or 3) communication between the indoor electrical key oscillator (for rear floor) and key cannot be performed.

WIRING DIAGRAM


CAUTION / NOTICE / HINT

NOTICE:

  • The smart key system (for entry function) uses a multiplex communication system (LIN communication system) and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting (See page ). Troubleshoot the smart
    key system (for entry function) after confirming that the communication system is functioning properly.
  • When using the Techstream with the engine switch off to troubleshoot: Connect the Techstream to the DLC3, and turn a courtesy light switch on and off at 1.5-second intervals until communication between the Techstream and vehicle begins.

PROCEDURE

1.

CHECK SMART KEY SYSTEM (for Start Function)

(a) Remove the battery of the key (See page ).


(b) With the brake pedal depressed, touch the engine switch while facing the logo side of the key to the engine switch.


(c) When operating the engine switch, check whether the power source mode changes.

OK:

Power source mode changes.

HINT:

  • When the key cannot be verified even though it is within the specified range, the engine start check can be performed by removing the transmitter battery from the key and holding the transmitter close to the engine switch.
  • When performing the check, if the power source mode changes, there is a problem with key certification inside the cabin.

NG

GO TO SMART KEY SYSTEM (for Start Function) (Proceed to How to Proceed with Troubleshooting)


OK

2.

CHECK WAVE ENVIRONMENT

(a) Install the battery to the key (See page ).


(b) Bring the key near the indoor electrical key oscillator (for front floor), and check that the engine can be started.

NOTICE:

If the key is brought within 0.2 m (0.656 ft.) of the indoor electrical key oscillator (for front floor), communication is not possible.

(c) Bring the key near the indoor electrical key oscillator (for center floor), and check that the engine can be started.

NOTICE:

If the key is brought within 0.2 m (0.656 ft.) of the indoor electrical key oscillator (for center floor), communication is not possible.

(d) Bring the key near the indoor electrical key oscillator (for rear floor), and check that the engine can be started*.

*: If the customize setting for Ignition Available Area is not set ALL, the engine will not start. Before performing this inspection, check that ALL has been selected (See page ).


NOTICE:

If the key is brought within 0.2 m (0.656 ft.) of the indoor electrical key oscillator (for rear floor), communication is not possible.

HINT:

  • When the key is brought near the indoor electrical key oscillator, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
  • If the operation is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

OK:

The engine starts.


OK

AFFECTED BY WAVE INTERFERENCE


NG

3.

PERFORM KEY DIAGNOSTIC MODE INSPECTION

(a) Diagnostic mode inspection (indoor electrical key oscillator (for front floor))

(1) Connect the Techstream to the DLC3.

(2) Turn the engine switch on (IG).

(3) Turn the Techstream on.

(4) Enter the following menus: Body Electrical / Smart Key / Key Communication Check / Overhead + Front Room.

(5) When the key is placed on the driver seat or front passenger seat cushion, check that the wireless door lock buzzer sounds.


(b) Diagnostic mode inspection (indoor electrical key oscillator (for center floor))

(1) Connect the Techstream to the DLC3.

(2) Turn the engine switch on (IG).

(3) Turn the Techstream on.

(4) Enter the following menus: Body Electrical / Smart Key / Key Communication Check / Overhead + Rear Room.

(5) When the key is placed on the rear seat cushion, check that the wireless door lock buzzer sounds.


(c) Diagnostic mode inspection (indoor electrical key oscillator (for rear floor))

(1) Connect the Techstream to the DLC3.

(2) Turn the engine switch on (IG).

(3) Turn the Techstream on.

(4) Enter the following menus: Body Electrical / Smart Key / Key Communication Check / Overhead + Back Door (inside).

(5) When the key is held at the same height as the rear bumper upper surface and aligned with the center of the rear of the vehicle, check that the wireless door lock buzzer sounds.

HINT:

If the buzzer sounds, it can be determined that the indoor electrical key oscillators are operating normally.

Result:

Result

Proceed to

Wireless door lock buzzer does not sound only for indoor electrical key oscillator (for front floor).

A

Wireless door lock buzzer does not sound only for indoor electrical key oscillator (for center floor).

B

Wireless door lock buzzer does not sound only for indoor electrical key oscillator (for rear floor).

C

Wireless door lock buzzer does not sound for all indoor electrical key oscillators.

D

Wireless door lock buzzer sounds for all indoor electrical key oscillators.

E



B

GO TO STEP 8


C

GO TO STEP 12


D

GO TO STEP 16


E

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)


A

4.

CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - INDOOR ELECTRICAL KEY OSCILLATOR)

(a) Disconnect the certification ECU (smart key ECU assembly) connector.

(b) Disconnect the indoor electrical key oscillator (for front floor) connector.


(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

D25-7 (CLG5) - D27-1 (CLG3)

Always

Below 1 Ω

D25-8 (CG5B) - D27-3 (CLGB)

Always

Below 1 Ω

D25-7 (CLG5) - Body ground

Always

10 kΩ or higher

D25-8 (CG5B) - Body ground

Always

10 kΩ or higher

D27-1 (CLG3) - Body ground

Always

10 kΩ or higher

D27-3 (CLGB) - Body ground

Always

10 kΩ or higher

Text in Illustration

*1

Front view of wire harness connector

(to Certification ECU (Smart Key ECU Assembly))

*2

Front view of wire harness connector

(to Indoor Electrical Key Oscillator (for Front Floor))


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR


OK

5.

INSPECT INDOOR ELECTRICAL KEY OSCILLATOR (for Front Floor (INPUT))

(a) Reconnect the certification ECU (smart key ECU assembly) connector.


(b) Check for pulses according to the value(s) in the table below.

Standard:

Tester Connection

Condition

Specified Condition

D27-1 (CLG3) - D27-3 (CLGB)

  • Engine switch off
  • All door closed
  • Key not in cabin
  • Door outside handle assembly (lock sensor) not touched

No pulse generation

D27-1 (CLG3) - D27-3 (CLGB)

  • Engine switch off
  • All door closed
  • Key not in cabin
  • Door outside handle assembly (lock sensor) touched

Pulse generation

Text in Illustration

*1

Front view of wire harness connector

(to Indoor Electrical Key Oscillator (for Front Floor))


NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)


OK

6.

REPLACE INDOOR ELECTRICAL KEY OSCILLATOR (for Front Floor)

(a) Replace the indoor electrical key oscillator (for front floor (See page ).



NEXT

7.

CHECK SMART KEY SYSTEM (ENTRY IGNITION FUNCTION (for Front Floor))

(a) Inspect the detection area for the entry ignition function (for front floor). Make sure that the direction of the key is as shown in the illustration. When the key is in either of the 2 inspection points shown in the illustration, check that the engine can start.

OK:

Engine starts normally.



OK

END (INDOOR ELECTRICAL KEY OSCILLATOR WAS DEFECTIVE)


NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

8.

CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - INDOOR ELECTRICAL KEY OSCILLATOR)

(a) Disconnect the certification ECU (smart key ECU assembly) connector.

(b) Disconnect the indoor electrical key oscillator (for center floor) connector.


(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

D25-24 (CLG6) - L10-1 (CLG4)

Always

Below 1 Ω

D25-25 (CG6B) - L10-3 (CLGB)

Always

Below 1 Ω

D25-24 (CLG6) - Body ground

Always

10 kΩ or higher

D25-25 (CG6B) - Body ground

Always

10 kΩ or higher

L10-1 (CLG4) - Body ground

Always

10 kΩ or higher

L10-3 (CLGB) - Body ground

Always

10 kΩ or higher

Text in Illustration

*1

Front view of wire harness connector

(to Certification ECU (Smart Key ECU Assembly))

*2

Front view of wire harness connector

(to Indoor Electrical Key Oscillator (for Center Floor))


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR


OK

9.

INSPECT INDOOR ELECTRICAL KEY OSCILLATOR (for Center Floor (INPUT))

(a) Reconnect the certification ECU (smart key ECU assembly) connector.


(b) Check for pulses according to the value(s) in the table below.

Standard:

Tester Connection

Condition

Specified Condition

L10-1 (CLG4) - L10-3 (CLGB)

  • Engine switch off
  • All door closed
  • Key not in cabin
  • Door outside handle assembly (lock sensor) not touched

No pulse generation

L10-1 (CLG4) - L10-3 (CLGB)

  • Engine switch off
  • All door closed
  • Key not in cabin
  • Door outside handle assembly (lock sensor) touched

Pulse generation

Text in Illustration

*1

Front view of wire harness connector

(to Indoor Electrical Key Oscillator (for Center Floor))


NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)


OK

10.

REPLACE INDOOR ELECTRICAL KEY OSCILLATOR (for Center Floor)

(a) Replace the indoor electrical key oscillator (for center floor) (See page ).



NEXT

11.

CHECK SMART KEY SYSTEM (ENTRY IGNITION FUNCTION (for Center Floor))

(a) Inspect the detection area for the entry ignition function (for center floor). Make sure that the direction of the key is as shown in the illustration. When the key is in either of the 2 inspection points shown in the illustration, check that the engine can start.

OK:

Engine starts normally.



OK

END (INDOOR ELECTRICAL KEY OSCILLATOR WAS DEFECTIVE)


NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

12.

CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - INDOOR ELECTRICAL KEY OSCILLATOR)

(a) Disconnect the certification ECU (smart key ECU assembly) connector.

(b) Disconnect the indoor electrical key oscillator (for rear floor) connector.


(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

D25-26 (CLG7) - M18-1 (CLG6)

Always

Below 1 Ω

D25-27 (CG7B) - M18-3 (CLGB)

Always

Below 1 Ω

D25-26 (CLG7) - Body ground

Always

10 kΩ or higher

D25-27 (CG7B) - Body ground

Always

10 kΩ or higher

M18-1 (CLG6) - Body ground

Always

10 kΩ or higher

M18-3 (CLGB) - Body ground

Always

10 kΩ or higher

Text in Illustration

*1

Front view of wire harness connector

(to Certification ECU (Smart Key ECU Assembly))

*2

Front view of wire harness connector

(to Indoor Electrical Key Oscillator (for Rear Floor))


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR


OK

13.

INSPECT INDOOR ELECTRICAL KEY OSCILLATOR (for Rear Floor (INPUT))

(a) Reconnect the certification ECU (smart key ECU assembly) connector.


(b) Check for pulses according to the value(s) in the table below.

Standard:

Tester Connection

Condition

Specified Condition

M18-1 (CLG6) - M18-3 (CLGB)

  • Engine switch off
  • All door closed
  • Key not in cabin
  • Door outside handle assembly (lock sensor) not touched

No pulse generation

M18-1 (CLG6) - M18-3 (CLGB)

  • Engine switch off
  • All door closed
  • Key not in cabin
  • Door outside handle assembly (lock sensor) touched

Pulse generation

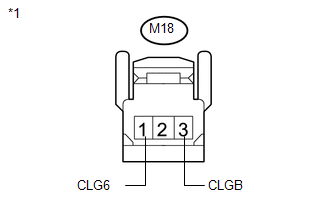

Text in Illustration

*1

Front view of wire harness connector

(to Indoor Electrical Key Oscillator (for Rear Floor))


NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)


OK

14.

REPLACE INDOOR ELECTRICAL KEY OSCILLATOR (for Rear Floor)

(a) Replace the indoor electrical key oscillator (fro rear floor) (See page ).



NEXT

15.

CHECK SMART KEY SYSTEM (ENTRY IGNITION FUNCTION (for Rear Floor))

(a) Inspect the detection area for the entry ignition function (for rear floor). Make sure that the direction of the key is as shown in the illustration. When the key is in either of the 2 inspection points shown in the illustration, check that the engine can start.

OK:

Engine starts normally.



OK

END (INDOOR ELECTRICAL KEY OSCILLATOR WAS DEFECTIVE)


NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

16.

CHECK TRANSMITTER BATTERY

(a) Remove the battery from the key that does not operate. Attach a lead wire (0.6 mm (0.0236 in.) or less in diameter including wire sheath) with tape or equivalent to the negative (-) terminal (See page ).


NOTICE:

Do not wrap a lead wire around the terminal, wedge it between the terminals, or solder it. Terminal may be deformed or damaged, and the battery will not be able to be installed correctly.


(b) Carefully pull the lead wire out from the position shown in the illustration and install the previously removed transmitter battery.

(c) Using an oscilloscope, check the transmitter battery voltage waveform.


HINT:

When measuring the battery voltage, while operating the lock switch of a door outside handle assembly, bring the key within the entry operating range to perform the measurement. For the entry operating range, refer to System Description (See page ).


Standard Voltage:

Item

Content

Tester Connection

Battery positive (+) - Battery negative (-)

Tool Setting

0.5 V/DIV., 100 ms/DIV.

Condition

Engine switch off, all doors closed and lock switch pushed

Specified Condition

2.2 to 3.2 V (Refer to the waveform)


NG

REPLACE TRANSMITTER BATTERY


OK

17.

CHECK ELECTRICAL KEY TRANSMITTER

(a) Check if another registered key is available.

Result

Proceed to

Another registered key is not available.

A

Another registered key is available.

B


B

GO TO STEP 19


A

18.

REGISTER ELECTRICAL KEY TRANSMITTER

(a) Register a new key (See page ).



NEXT

19.

CHECK ELECTRICAL KEY TRANSMITTER (OPERATION)

(a) Using the key registered in the previous step or another registered key, check that the engine starts normally.

OK:

Engine starts normally.


OK

REPLACE ELECTRICAL KEY TRANSMITTER (REPLACE MALFUNCTIONING KEY)


NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

Front Passenger Side Door Entry Lock Function does not Operate
DESCRIPTION If the front passenger door entry unlock function operates normally, but its entry lock function does not, this means that the request code from the front passenger door is being outp ...

Entry Interior Alarm does not Sound
DESCRIPTION The smart key system uses the combination meter buzzer to perform various vehicle interior warnings. When the conditions for each warning are met, the certification ECU (smart key ECU ...

Other materials about Toyota Venza:

Short in GPS Antenna (B15C0,B15C1)
DESCRIPTION These DTCs are stored when a malfunction occurs in the navigation antenna assembly. DTC No. DTC Detection Condition Trouble Area B15C0 Navigation antenna malfunction ...

Terminals Of Ecu
TERMINALS OF ECU 1. REAR TELEVISION CAMERA ASSEMBLY (a) Disconnect the R21 rear television camera assembly connector. (b) Measure the voltage on the wire harness side connector according to the value(s) in the table below. Terminal No. (Symb ...

Precaution
PRECAUTION CAUTION: Replace any faulty seat belt components (outer belt, inner belt, bolts, nuts, adjustable shoulder anchor, tether anchor hardware and other related parts). When inspecting a vehicle that was in a collision, be sure to check all of the ...

© 2016-2019 Copyright www.tovenza.com

0.2105
