INSTALLATION

PROCEDURE

1. INSTALL REAR DOOR LOCK ASSEMBLY

NOTICE:

When reusing the removed rear door lock assembly, replace the door lock wiring harness seal on the connector with a new one.
Do not allow grease or dust to adhere to the door lock wiring harness seal surface of the connector.
Reusing the door lock wiring harness seal or using a damaged door lock wiring harness seal may cause water intrusion. This may result in a malfunction of the rear door lock assembly.

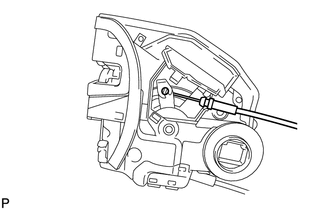

(a) Install the rear door inside locking cable assembly to the rear door lock assembly.

(b) Engage the 3 claws.

(d) Engage the claw.

(e) Apply MP grease to the sliding parts of the rear door lock assembly.

(f) Install a new door lock wiring harness seal to the rear door lock assembly.

(g) Insert the rear door lock assembly to the rear door outside handle release plate, and set it to the rear door panel.

(h) Make sure that the rear door outside handle frame release plate is securely connected to the rear door lock assembly.

(i) Apply adhesive to the threads of the bolt.

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

(j) Using a T30 "TORX" socket wrench, install the rear door lock assembly with the 3 screws.

Torque:

5.0 N·m {51 kgf·cm, 44 in·lbf}

2. INSTALL REAR DOOR GLASS SUB-ASSEMBLY

3. INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

4. INSTALL REAR DOOR GLASS RUN

5. INSTALL REAR DOOR SERVICE HOLE COVER

6. INSTALL REAR DOOR INSIDE HANDLE SUB-ASSEMBLY

7. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

8. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

9. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).

11. INITIALIZE POWER WINDOW CONTROL SYSTEM

(See page )
